Custom Silicone Manufacturing Case Studies
Representative OEM / ODM projects across medical respiratory devices, retail household goods, kitchenware, baby care and electronics. Client names are protected by NDA, but the material, process and inspection details show how a project actually comes together.
From Specification to Shipment
Every case below follows the same structure we use internally — so you can evaluate whether our process fits your product, not just our unit price.
| Field | What it tells a buyer |
|---|---|
| Industry & product use | The market and how the part is used — shapes the material and compliance requirements. |
| Material & hardness | The silicone grade and Shore A hardness chosen for feel, durability and safety. |
| Molding process | Compression, LSR injection or overmolding — selected for geometry, detail and volume. |
| Inspection & compliance | The dimensional, hardness, tensile and food-contact tests performed before release. |
Foldable Food-Grade Baking & Storage Set
The challenge: a European housewares brand needed a collapsible baking and food-storage line that could withstand oven temperatures yet fold flat for retail display — without creasing or cracking after repeated folding. Our solution: we selected a food-grade platinum-cured compound at the right hardness and tuned the fold-line wall thickness so each piece collapsed cleanly and bounced back, then confirmed oven performance and LFGB food-contact compliance before production.
- Material: Food-grade platinum-cured silicone, LFGB-compliant
- Hardness: Shore 50–60A for foldability with shape retention
- Process: Compression molding with multi-cavity tooling
- Inspection: Dimensional, hardness, temperature resistance and LFGB food-contact testing
- Delivery: 3–7 day sampling, 150,000+ pieces/year, on-time delivery across 6+ repeat production runs
Soft-Grip Teething & Feeding Range
The challenge: a North American baby brand needed a teether and feeding-spoon line with a soft, gum-safe bite and a dishwasher-safe finish — while keeping material purity and color consistency exact across every batch. Our solution: LSR injection molding with tight process control delivered fine detail and part-to-part repeatability, and three-stage QC plus migration testing gave the brand confidence in every shipment.
- Material: Food-grade silicone, FDA 21 CFR 177.2600 tested
- Hardness: Shore 40–45A for a soft, resilient bite
- Process: LSR injection molding for fine detail and part-to-part repeatability
- Inspection: Dimensional, hardness, food-contact and migration testing, three-stage QC
- Delivery: 3–7 day sampling, 200,000+ pieces/year, batch traceability from raw material to shipment
Respiratory Therapy Device Components
The challenge: a leading global respiratory device brand needed soft, biocompatible components for breathing-therapy interfaces that must stay consistent and traceable under medical-grade process control. Our solution: medical-grade platinum-cured silicone molded in a controlled cleanroom, with full batch traceability from raw material to shipment so every lot can be audited.
- Material: Medical-grade platinum-cured silicone
- Hardness: Shore 30–40A for soft, conformable skin contact
- Process: LSR injection molding in a controlled cleanroom environment
- Inspection: Dimensional, hardness, tensile and visual inspection with full batch traceability
- Delivery: 7–14 day sampling, cleanroom production, controlled-environment batch release with full traceability
Precision Protective Covers & Keypads
The challenge: a consumer electronics brand needed dust-resistant protective covers and tactile keypads with a precise fit and a premium matte finish — where even a fraction of a millimetre off would break the sealed fit. Our solution: tight-tolerance compression molding with ±0.1 mm dimensional control, and a Shore 60–70A compound chosen for tactile response and wear resistance.
- Material: Silicone rubber with RoHS / REACH compliance
- Hardness: Shore 60–70A for tactile response and wear resistance
- Process: Compression molding with tight tolerance control
- Inspection: Dimensional (±0.1 mm), hardness and RoHS/REACH restricted-substance testing
- Delivery: 3–7 day sampling, multi-cavity tooling for 500,000+ pieces/year, repeatable ±0.1 mm dimensional control
Retail Household Goods & Promotional Items
The challenge: a top North American retail chain needed a range of everyday household goods and promotional items — from kitchen tools to branded giveaways — delivered on strict retail timelines with full compliance and packaging control. Our solution: multi-cavity compression tooling for cost-effective volume, retail-grade packaging QC, and on-time-delivery tracking across dozens of SKUs.
- Material: Food-grade and general-purpose silicone, RoHS / REACH compliant
- Hardness: Shore 40–70A depending on the item
- Process: Compression molding with multi-cavity tooling for cost-effective volume
- Inspection: Dimensional, hardness, functional and restricted-substance testing with retail-grade packaging QC
- Delivery: 3–7 day sampling, 300,000+ pieces/year across 30+ SKUs, retail compliance and on-time-delivery (OTD) tracking

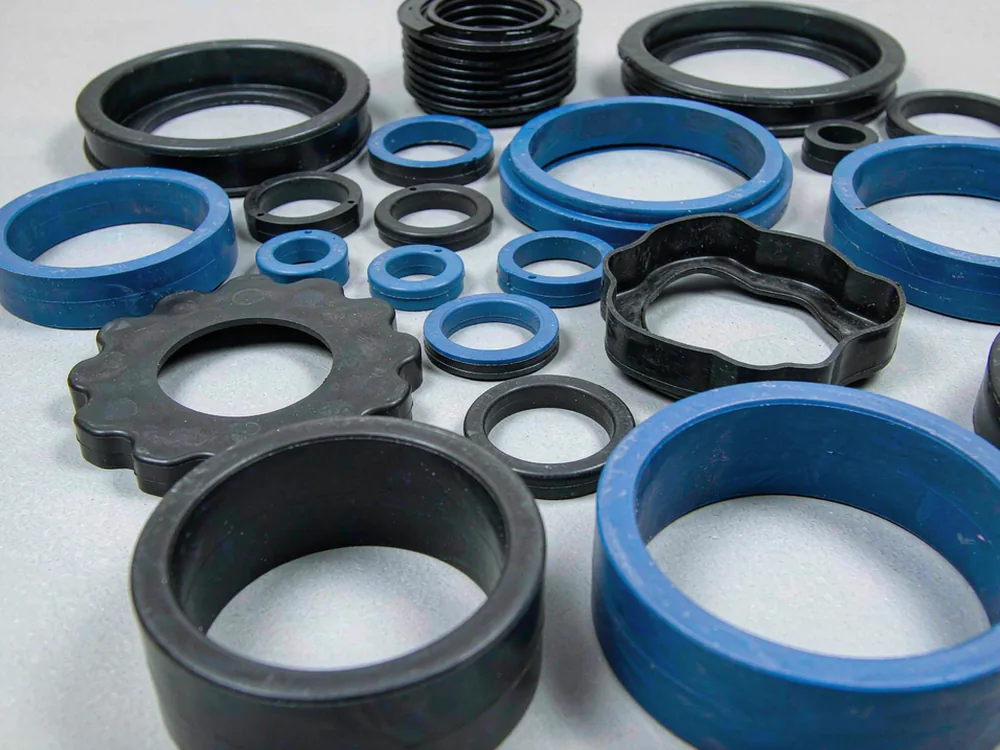

Heat- & Oil-Resistant Sealing Components
The challenge: a European automotive tier supplier needed silicone O-rings, gaskets and sealing rings that hold up under engine-compartment heat, oil and vibration — with tight dimensional control for automated assembly. Our solution: a high-temperature, oil-resistant compound at Shore 60–70A, compression molded in multi-cavity tooling with ±0.01 mm cavity tolerance and per-batch temperature verification from -40 °C to +230 °C.
- Material: High-temperature, oil-resistant silicone rubber, RoHS / REACH compliant
- Hardness: Shore 60–70A for compression set resistance
- Process: Compression molding with multi-cavity tooling, ±0.01 mm cavity tolerance
- Inspection: Dimensional, hardness, compression set and restricted-substance testing
- Delivery: 7–14 day sampling, 400,000+ pieces/year, temperature range -40 °C to +230 °C verified per batch

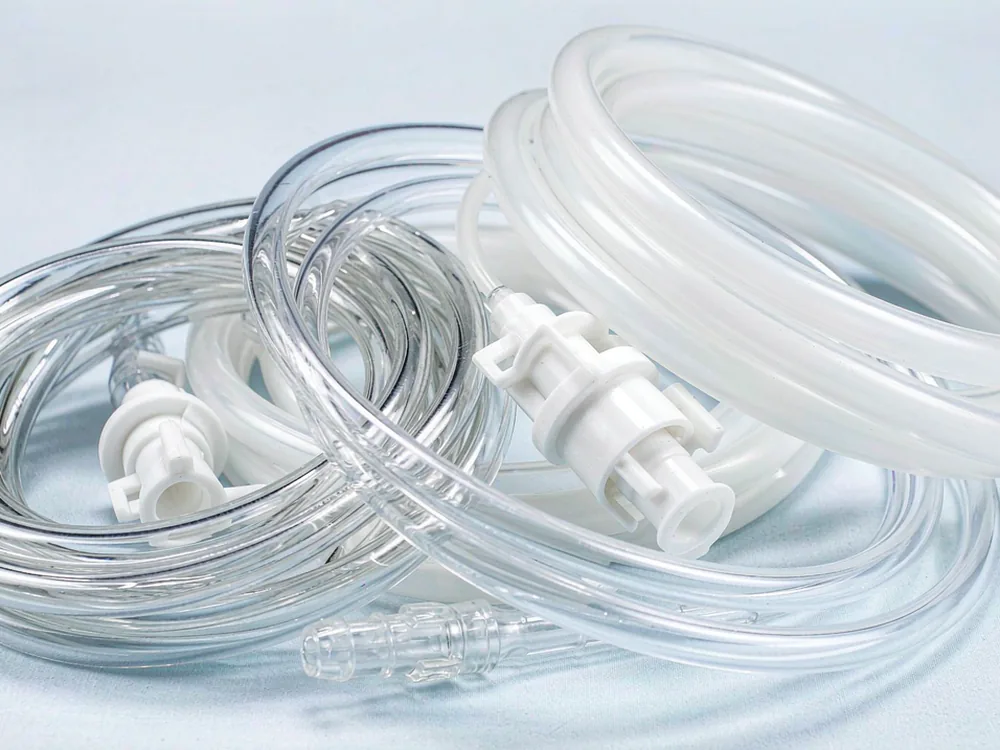

Biocompatible Silicone Tubing & Connectors
The challenge: a medical device manufacturer required precision silicone tubing and molded connectors for a fluid-delivery application — demanding biocompatibility, dimensional consistency and full lot traceability. Our solution: extrusion for the tubing, LSR injection for the connectors, cleanroom assembly, and medical-grade platinum-cured silicone tested to USP Class VI / ISO 10993 with full lot traceability and a certificate of conformance.
- Material: Medical-grade platinum-cured silicone, USP Class VI / ISO 10993 tested
- Hardness: Shore 40–60A depending on wall thickness and flow requirements
- Process: Extrusion for tubing, LSR injection for connectors, cleanroom assembly
- Inspection: Dimensional, hardness, visual and biocompatibility testing with full lot traceability
- Delivery: 7–14 day sampling, controlled cleanroom environment, batch release with certificate of conformance

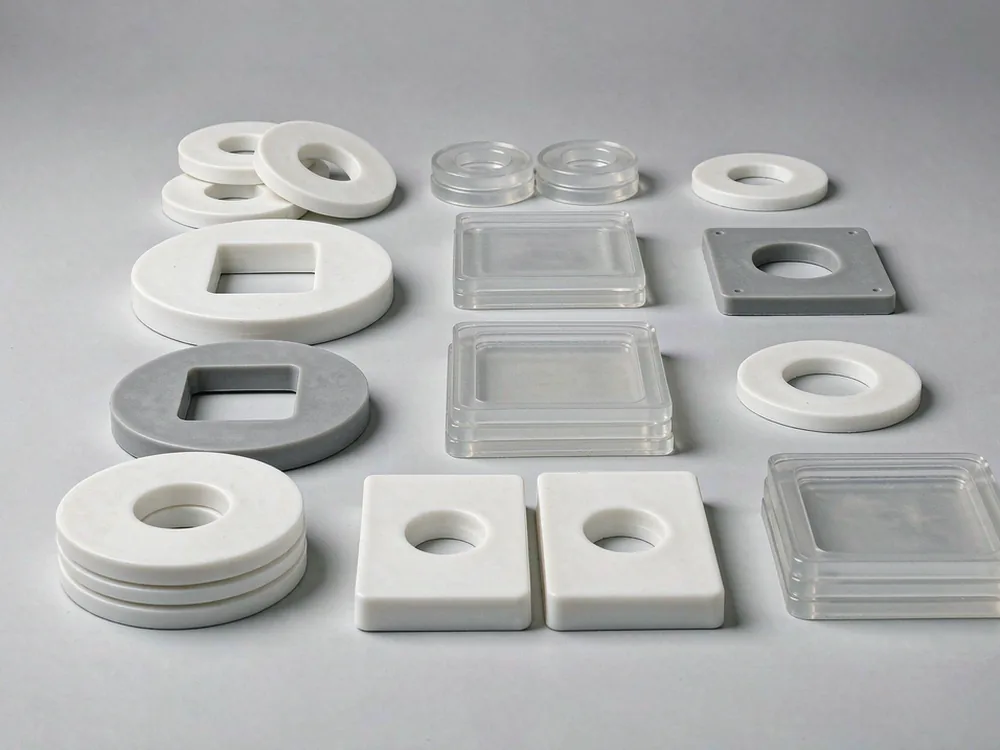

Precision Washers & Sealing Pads
The challenge: an industrial equipment maker needed flat washers, gaskets and thick sealing pads with consistent thickness and clean edges for high-volume assembly across multiple enclosure sizes. Our solution: multi-cavity compression molding with tight thickness control, clean-trimmed edges, and dimensional plus hardness inspection on every batch for reliable automated assembly.
- Material: Solid silicone rubber, general and food-contact grades available
- Hardness: Shore 40–70A depending on the sealing load
- Process: Compression molding with multi-cavity tooling for cost-effective volume
- Inspection: Dimensional, thickness uniformity, hardness and visual inspection
- Delivery: 3–7 day sampling, 250,000+ pieces/year, uniform thickness control for automated assembly
Your Project Stays Yours
The examples above are anonymized. Every project we run is protected by NDA — drawings, samples, tooling, molds and brand information remain confidential from first contact to delivery and beyond.
For qualified projects we can, with client approval, arrange a reference discussion or provide additional capability details on request.
- NDA available before detailed discussion
- Tooling and molds remain your property
- Private-label and OEM branding handled discreetly
- Full traceability from raw material to shipment
Have a Similar Project in Mind?
Tell us your product use, material and quantity — we will recommend a process and quote from your drawings, sample or idea.
Start Your Case Study
